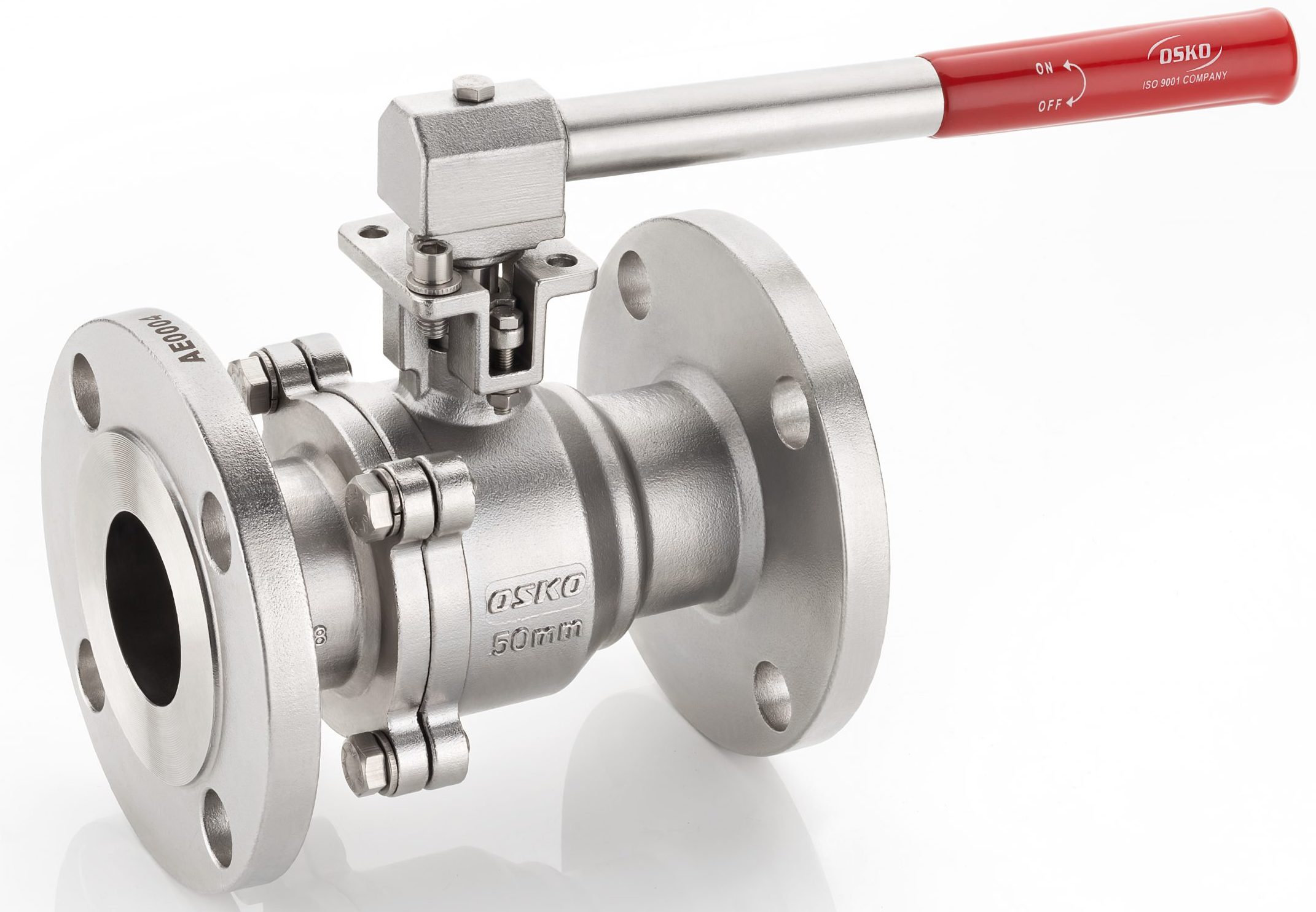

2-Piece IC Flanged End Ball Valves With ISO Mounting Pad

Size Range: 15mm to 200mm

Normative Standard
Design Standard: IS/ISO 17292 | BS5351
Testing Standard: API 598 | IS/ISO 17292
Face to Face: ASME B16.10
Pressure Rating150#
End connectionFlanged to suit ASME B16.5 #150
Materials
Body: WCB | CF8 | CF8M | Super Duplex | etc
Seat: PTFE , RPTFE, CFT, GFT, PEEK etc
OperationLever Operated, Gear Operated, Pneumatically Actuated, Electrically Actuated (Motorized)
Salient Features / Benefit
  • Locking Arrangement Available
  • Anti Static & Fire safe valves available
  • Sturdy handle
  • Mirror Finished Ball
  • Floating Ball Type
  • Push Type Gland
  • Integral ISO Mounting Pad
  • Low torque & long life
